APS-385-400
«The Air-Pad-Sliding Module: Precise and safe system for sliding heavy loads.»
Back
Sliding

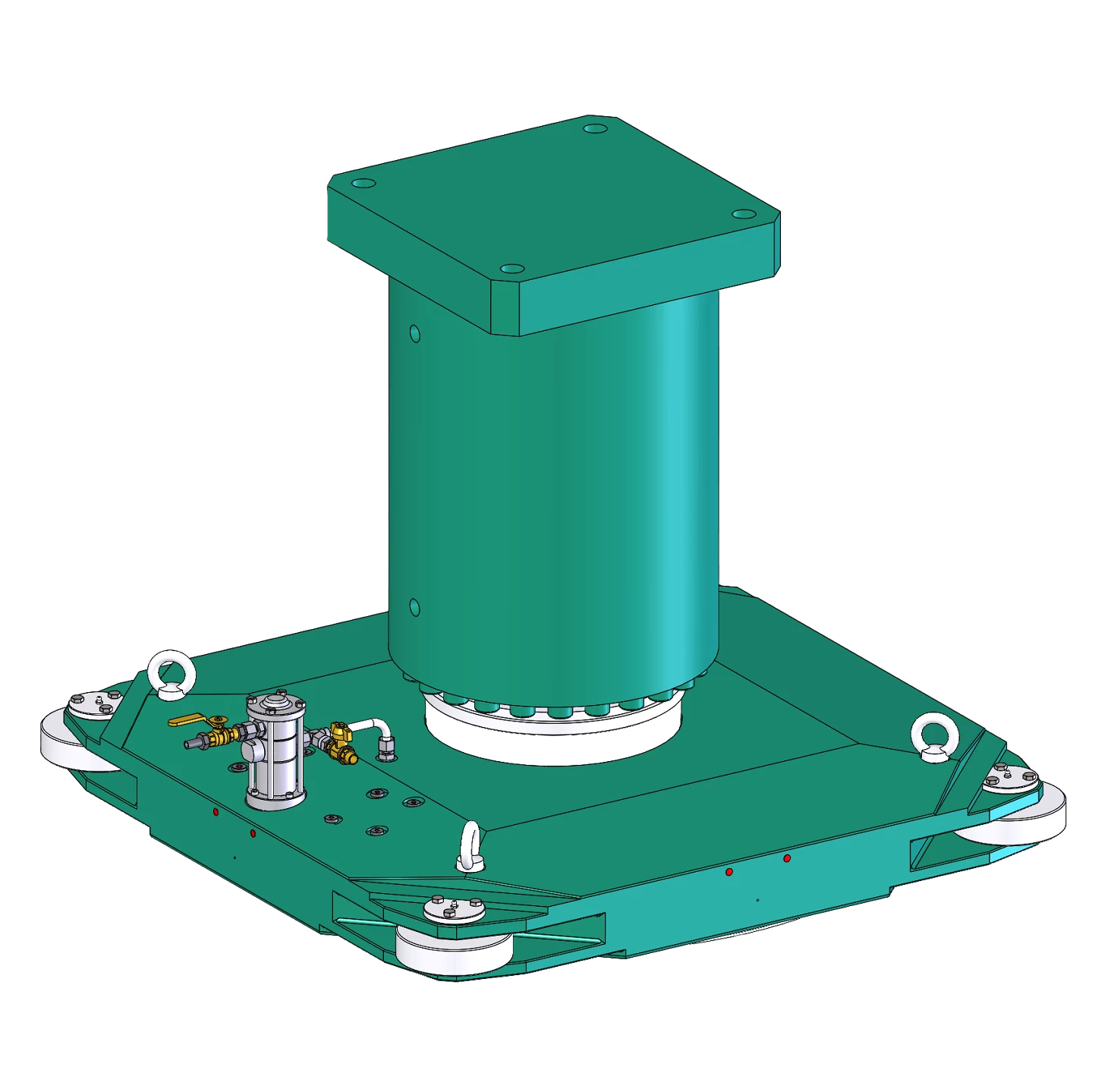

Air-Pad-Sliding M-385-400 (3’850 kN)

The APS module is a sliding system for heavy loads with numerous advantages. It offers low sliding resistance under 1%, facilitates the movement of 50 to over 100,000 tons.

The modules are combinable, provide high sliding speeds (20 – 150m/h), and allow for directional changes without repositioning.

NOTE: All temporary steel structures above must be secured. The APS system includes a spherical hinge.

Fakten & Downloads

Capacity:
3'850 kN
Dimension:
1'125 x 973 mm
Weight:
1'900 kg
